Splunking Okta, and Okta'ing Splunk Part 1

06/02/2019 – Author: Jamie Turbill – Certified Splunk and Okta Consultant

This post encompasses two of the exciting technologies we are able to provide at Somerford, Splunk and Okta. We have fully certified consultants for both technologies. Splunk is a platform for machine data. It turns it into something that you can actually use and makes data valuable, from Security to IT Operations to Business Analytics, Splunk makes it easy to understand and useful. Okta provides cloud ready identity and access management, helping you to secure access to your critical applications with powerful features like secure SSO, lifecycle management, adaptive multi-factor authentication and more. As businesses use more and more applications, keeping identities secure and consistent is presenting an ever larger challenge in organisations.

This two-part blog covers how you can seamlessly integrate with both of these products, securing your important Splunk data and expanding on Okta’s reports and system log with Splunk. Today, we will look at how you can achieve secure single-sign on with Splunk and Okta.

Adding the Splunk app to Okta

It’s no secret that Okta has a huge library of pre-built integrations that you can use in the Okta Integration Network (OIN). In fact, as I’m typing this there are over 6000 available! Perhaps it’s no surprise then that both Splunk Cloud and Splunk Enterprise are already available and are fully Okta Verified.

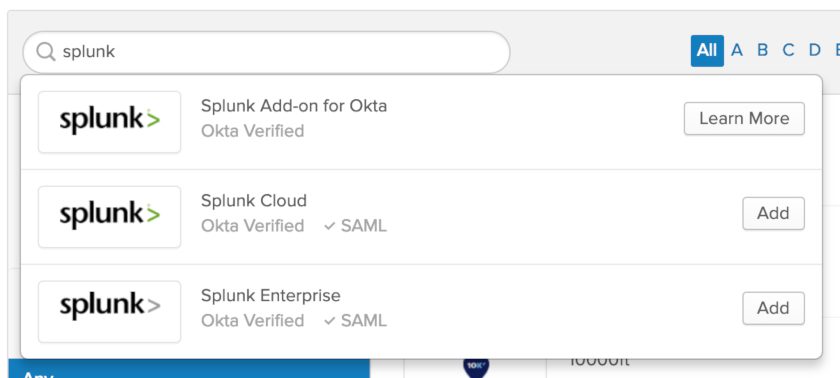

To setup Splunk and Okta, simply add the application to your Okta tenant. Go to your Okta admin portal and click on Applications > Add Application and simply search for “Splunk”.

We’ll ignore the Splunk Add-on for Okta here, this will be discussed in the next part to this blog. Both Splunk Cloud and Splunk Enterprise are available and support SAML. Because the steps are virtually the same, we’ll focus on Splunk Enterprise today. You can repeat most of the steps below for Splunk Cloud, but you must ensure that SAML is enabled on your Splunk Cloud instance first! (Contact Splunk Support to enable)

Additionally, I am using version 7.2.0 of Splunk but the steps for SAML should be similar on earlier versions.

Application label and general settings

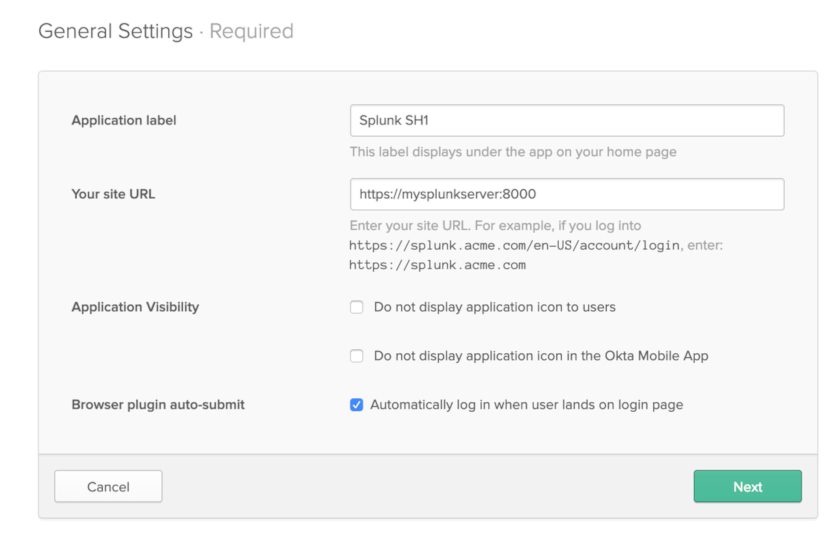

Go ahead and click on “Add” for Splunk Enterprise, and enter an application label, and your Splunk URL:

Okta general settings set up

When you click “Next”, you will see many options for SAML 2.0. Ignore these for now and just click on “Done” (we’ll look at this later).

Go to your Splunk instance and head to Settings > Access Controls > Authentication Method. Choose SAML and then click on the link to configure SAML:

​A pop-up will appear. When setting up SAML with any application, metadata needs to be exchanged between the IdP (that’s Okta) and the SP (the application, Splunk). Download Splunk’s SP metadata.

SPMetadat pop up from splunk

​This will download a XML file. Open this XML file in Notepad++ or another suitable text editor.

XML file metadata download from splunk app for okta

​Copy and paste the x509 certificate within this (the string inside the <ds:X509Certificate> XML tags) to a new text file, prepending and appending —–BEGIN CERTIFICATE—– and —–END CERTIFICATE—– like the below:

Save the file as splunk.cert

Configuring Okta Single Logout (SLO)

Back to Okta – go to the Sign-on tab and choose “Enable Single Logout”. Single Logout (SLO) is a feature that allows users to seamlessly and securely logout of Splunk, and Okta at the same time. Under “Signature Certificate”, upload your splunk.cert file.

Configuring a splunk.cert file

Also configure the “role” setting at the same time. This defines what Okta groups a user is a member of and is passed to Splunk with the SAML authentication request. I’ve set this to “Matches Regex” and the value .* – which means send anything in this case. (we can control what groups Splunk actually uses later, so normally .* is perfectly fine).

Populating Splunk with Okta’s metadata

At this point you will now need to populate Splunk with Okta’s metadata. Click on the link for Identity Provider Metadata in the SAML 2.0 yellow setup box:

​Again, this will download a new XML file. In Splunk’s configuration, upload this file by choosing “Select File” for “Metadata XML file”

SAML configuration

You should notice immediately that Splunk will auto-fill several fields for you at this point.

Make a few other tweaks to this:
Ensure that the “Single Log Out (SLO) URL” is set – set to Okta’s SLO endpoint.
This URL is the same as the “Single Sign On (SSO) URL” but /sso/saml is replaced to /slo/saml
Check the option to “Sign AuthnRequest” and “Verify SAML Response”
Entity ID – set this to “splunk-yourcompanyname”

Save the configuration. In Okta, make sure to add the same Entity ID under the Sign-on tab:

Advanced sign-on settings okta

And that’s it! SAML setup is complete. You now just need to map your Okta groups to your Splunk roles, which you can do in Splunk once you save the SAML configuration.

SAML group created

This example sets the Okta group “myoktagroupname” to the Splunk role “admin”. You can add multiple mappings here, and also map multiple Splunk roles to 1 Okta group. Simply assign a user to the app in Okta, and test it out!

In the event something goes wrong, you can always login as a standard Splunk user by going to: http(s)://<yoursplunkserver>:8000/en-GB/account/login?loginType=Splunk

SAML users in Splunk are added/updated at the time of login. A user’s email address and full name are also sent from Okta as SAML attributes and are stored in Splunk.

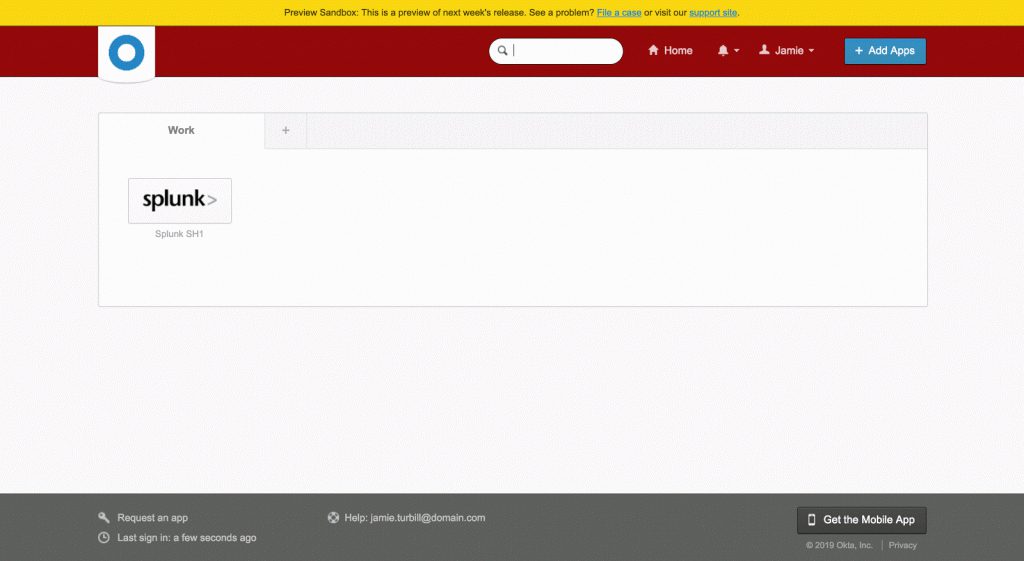

Users can now seamlessly login to Splunk from the Okta portal with their own Splunk accounts, and have their Splunk roles seamlessly mapped from the groups they are in within Okta.

Users do not need to remember a Splunk password ever again!

In part 2 of this blog, we will look at how Splunk can enhance the reporting and auditing already available in the Okta platform, using the Splunk add-on for Okta.
